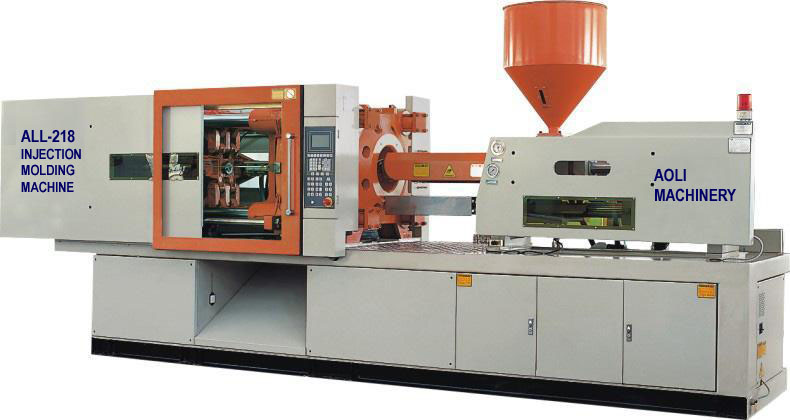

Injection Molding Machine ALL-218
Machine for general molding
Model ALL-218 Specifications
Model |
Screw Type |
||||
A |
B |
C |
|||
Injection Unit |
Screw Diameter | mm |
45 |
50 |
55 |
| Screw L/D Ratio | 22.5 |
20 |
18.2 |
||
| Shot Size (Theotical) | CM3 |
334 |
412 |
499 |
|
| Injection Capacity (PS) | g |
301 |
371 |
449 |
|
| Injection Pressure | Mpa |
216 |
175 |
144 |
|
| Srew Speed | rpm |
180 |
|||
Clamping Unit |
Clamp Force | KN |
2180 |
||
| Toggle Stroke | mm |
470 |
|||

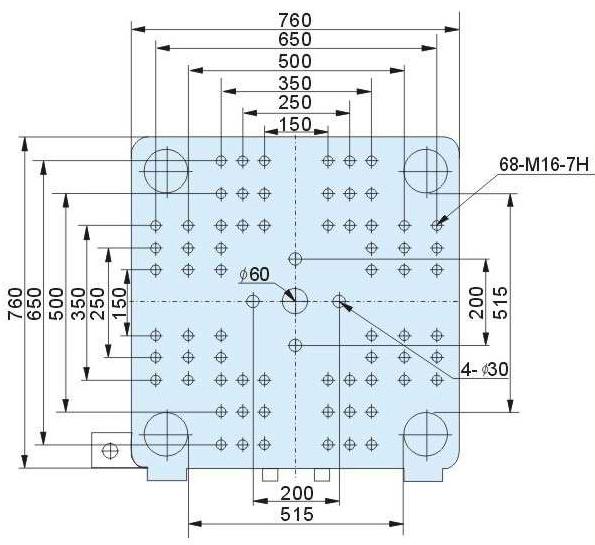

| Space Between Tie-Bars | mm |
515x515 |
|||
| Max. Mould Height | mm |
530 |
|||
| Min. Mould Height | mm |
200 |
|||
| Ejector Stroke | mm |
130 |
|||
| Ejector Force | KN |
62 |
|||
| Ejector Number | PC |
5 |
|||
General |
Max.Pump Pressure | MPs |
16 |
||
| Pump Motor Power | KW |
18.5 |
|||
| Heater Power | KW |
11.65 |
|||
| Machine Diamensions | m(LxWxH) |
5.6x1.4x2.3 |
|||
| Machine Weight | t |
6.7 |
|||
| Oil Tank | L |
350 |
|||
* Above table may not reflect recent changes. Please consult the sales person for accuracy.
Injection Molding Machine Modified for PET Preform Molding
Features
- Box mold platen design means stable and precise molding.
- Five point toggle mechanism ensures long life span and reliable movement.
- High-geared hydraulic system design features high accuracy, consistency and efficiency.
- Applied brand valves and pumps such as Vickers, Yukon or Rexroth to ensure machine with high performance and low maintenance.
- Twin-cylinder guarantees balanced injection.
- Pressure and flow proportional controlled.
- Multi-stage pressure/speed injection.
- Low-pressure mold protection.
- Linear sensors assure high accuracy on injection, clamping and ejection.
- Mold alignment driven by hydraulic motor. Mold adjustment can be done in shorttime with high accuracy at low pressure.
- Large LCD monitor shows current running status and the controller stores up to 100 mold settings.
- Integrated self-diagnosis is programmed in the control system with clear indications of the errors on the monitor.
- Mechanic, electronic and hydraulic safety system conformity to CE norms.
