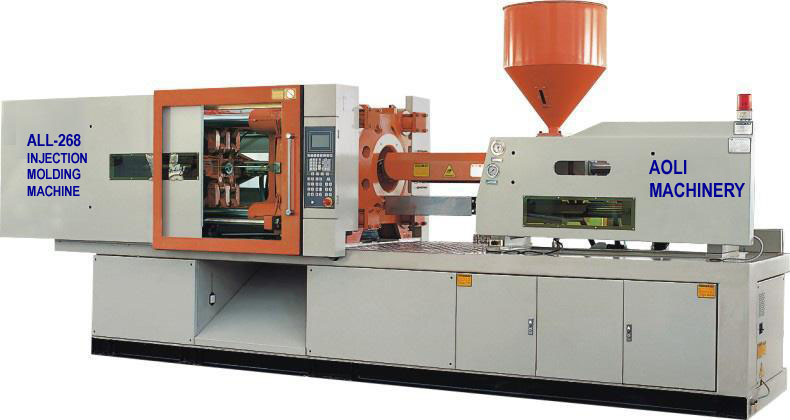

Injection Molding Machine ALL-268
Machine for general molding
Model ALL-268 Specifications
Model |
Screw Type |
||||
A |
B |
C |
|||
Injection Unit |
Screw Diameter | mm |
50 |
55 |
60 |
| Screw L/D Ratio | 22.5 |
20.5 |
18.8 |
||
| Shot Size (Theotical) | CM3 |
490 |
593 |
707 |
|
| Injection Capacity (PS) | g |
441 |
534 |
636 |
|
| Injection Pressure | Mpa |
205 |
169 |
142 |
|
| Srew Speed | rpm |
180 |
|||
Clamping Unit |
Clamp Force | KN |
2680 |
||
| Toggle Stroke | mm |
540 |
|||
| Space Between Tie-Bars | mm |
570x570 |
|||
| Max. Mould Height | mm |
600 |
|||
| Min. Mould Height | mm |
220 |
|||
| Ejector Stroke | mm |
160 |
|||
| Ejector Force | KN |
62 |
|||
| Ejector Number | PC |
9 |
|||
General |
Max.Pump Pressure | MPs |
16 |
||
| Pump Motor Power | KW |
22 |
|||
| Heater Power | KW |
14.7 |
|||
| Machine Diamensions | m(LxWxH) |
6.1x1.5x2.3 |
|||
| Machine Weight | t |
9 |
|||
| Oil Tank | L |
510 |
|||
* Above table may not reflect recent changes. Please consult the sales person for accuracy.
Injection Molding Machine Modified for PET Preform Molding
Features
- Box mold platen design means stable and precise molding.
- Five point toggle mechanism ensures long life span and reliable movement.
- High-geared hydraulic system design features high accuracy, consistency and efficiency.
- Applied brand valves and pumps such as Vickers, Yukon or Rexroth to ensure machine with high performance and low maintenance.
- Twin-cylinder guarantees balanced injection.
- Pressure and flow proportional controlled.
- Multi-stage pressure/speed injection.
- Low-pressure mold protection.
- Linear sensors assure high accuracy on injection, clamping and ejection.
- Mold alignment driven by hydraulic motor. Mold adjustment can be done in shorttime with high accuracy at low pressure.
- Large LCD monitor shows current running status and the controller stores up to 100 mold settings.
- Integrated self-diagnosis is programmed in the control system with clear indications of the errors on the monitor.
- Mechanic, electronic and hydraulic safety system conformity to CE norms.
