Injection Molding Machine Modified for PET preform Molding

Click here for regular injection molding machine

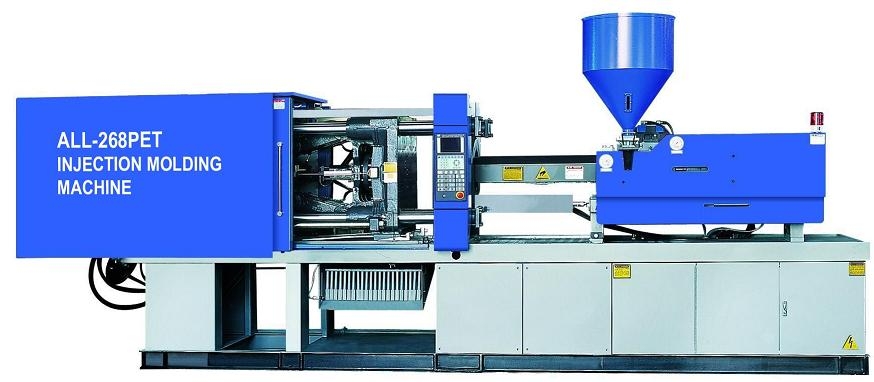

injection molding machine for pet preforms
Click for large image

Click to down load e-catalog (pdf 264kb)for injection molidng machine



Features



Specifications



Model
ALL-168 PET
ALL-218 PET
ALL-268 PET
ALL-308 PET
ALL-368 PET
ALL-468 PET
INJECTION UNIT
Screw diameter
mm
48
55
60
70
75
84
Screw L/D ratio
L/D
25
25
25
25
25
25
Shot Volume
(Theoretical)
cm3
389
499
707
989
1457
2160
Shot weight (PS)
g
350
449
636
900
1325
1966
oz
12.4
15.9
22.4
31.7
46.7
69.4
Injection pressure
Mpa
140
144
142
157
156
141
Injection Speed
mm/s
114
96
91
86
92
96
Screw speed
rpm
0 — 180
0 — 180
0 — 180
0 — 180
0 — 180
0 — 160
CLAMPING UNIT
Clamping force
KN
1680
2180
2680
3080
3680
4680
Toggle Stroke
mm
425
470
540
600
700
750
Space between
tie bars
mm
465x465
515x515
570x570
660x660
725x705
800x762
Max.Mould Height
mm
480
530
600
660
750
820
Min.Mould Height
mm
180
200
220
250
250
300
Ejector Stroke
mm
130
130
130
160
160
200
Ejector Force
KN
39.2
62
62
70
110
120
Ejector Number

5
5
9
13
13
13
OTHERS
Max.Pump Pressure
Mpa
16
16
16
16
16
16
Pump Motor Power
KW
15
18.5
22
30
37
45
Heater Power
KW
11.2
13
17
18.7
22
26
Machine Dimensions
(LxWxH)
m
5.18x1.21x2.22
5.8x1.34x2.27
6.09x1.41x2.34
7.05x1.71x2.42
7.53x1.87x2.57
8.30x1.92x2.71
Oil Tank Capacity
Liter
200
280
315
550
650
700
Machine weight
Ton
5.5
6.1
9
11
15
20



* Above table may not reflect recent changes. Please consult the sales person for accuracy.

* For regular injection molding machines please see
