Semi-automatic Stretch Blow Molding Machine

Do you feel headache to test newly designed bottle? Do you have difficulty to find bottle makers who is willing to make small quantity PET contaners with special design for your demand? You don't have enough budget to start your bottle production line. You are not sure if the new bottle design is marketable to your customers. Here you can find answers or solutions. The semi automatic stretch blow moudling machine can makes perfect PET bottles for you. This is perhaps the most affordable and flexible PET bottle blower in the world to make your own designed PET bottles from as small as 30ml to as large as 20 liters (5 gallons) with low cost.

Click here to see machine operation

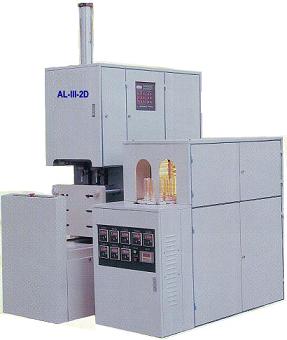

Semi Automatic Stretch Blowing Machine

large PET containers                    PET bottles for water

Features:

* Outstanding pneumatic system design and buffering device makes the machine running smoothly with low noise;

* High quality pneumatic and electric components enhance machine's reliability and low maintenance;

* Front open clamping is good for easy operating and mold changing;

* Infrared oven equipped with frequency converter for higher accuracy heat distribution for the preforms;

* Pre-blowing helps to have better PET bottle formation;

* With low cost and flexibility, this machine is extremely ideal for special bottle makers to have variety containers.



Semiautomatic Stretch Blowing Machine Specifications:

Model

AL-III-2
AL-III-5
AL-III-10
AL-III-20
Cavity Number

1
2
1
2
1
1
Min. Product Volume
Litre
0.03
0.1
5
10
Max. Product Volume
Litre
2
1.5
5.5
2
10
20
Min. Inner Neck Size
mm
15
15
50
50
Max. Neck Size
mm
90
65
120
90
120
120
Max. Product Diameter
mm
95
90
165
125
230
300
Max. Product Height
mm
305
330
420
520
Productivity
BPH
300
600
400
550
100
60
Blowing Pressure
MPa
<3
<3
<3
<3
Working Pressure
MPa
0.8
0.8
0.8
0.8
Rated Oven Power
KW
8
16
20
22.4
Clamping Force
KN
60
90
200
300
Machine Weight
kg
550
650
1500
1700
Oven Weight
kg
280
280
380
440
Machine Size
M
1.3x0.6x2.0
1.7x0.6x2.2
2.5x0.75x2
2.8x0.85x2
Oven Size
m
1.4x0.8x1.5
1.4x0.8x1.5
2x0.8x1.7
2.1x0.8x1.75



* Specifications are subject to change.
* Any special bottle design with size exceeds the above table, please send the details requirements, we might be able to modify machines to fit your needs.

Download catalog for semi automatic stretch blowing machine AL-III 2, AL-III-5

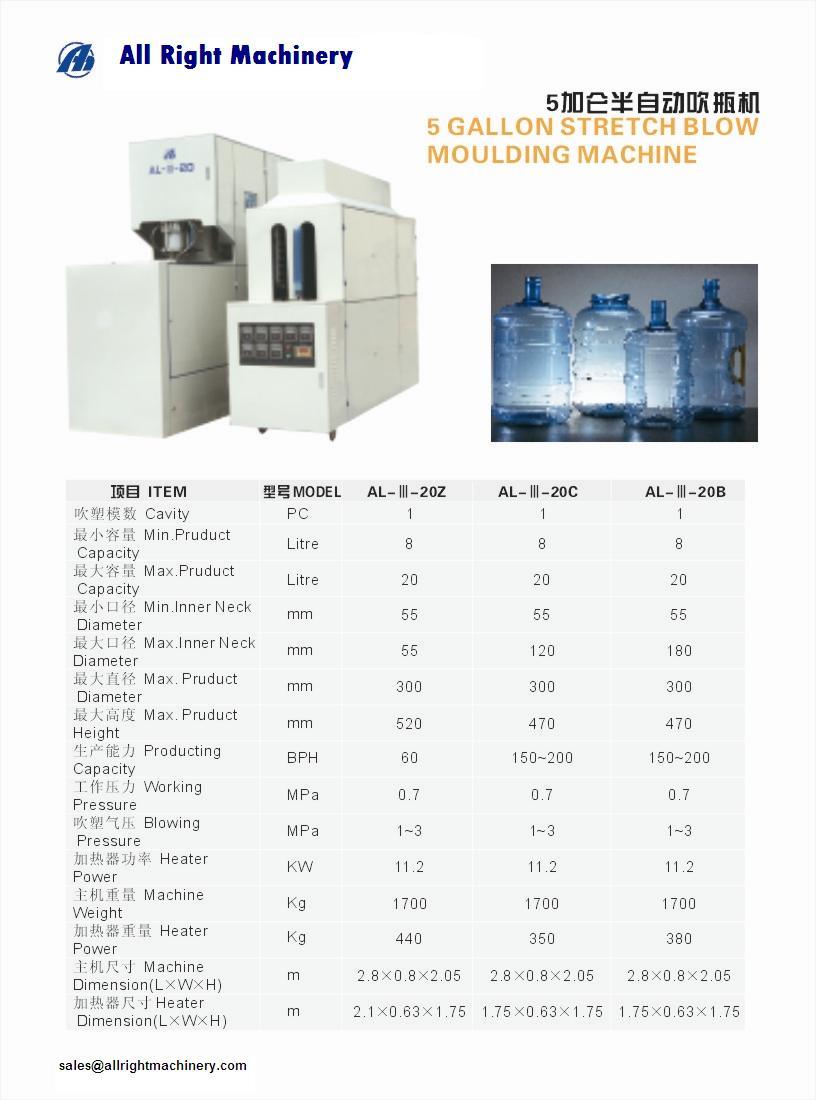

Download catalog for semi automatic stretch blowing AL-III-20
