Automatic Stretch Blow Molding Machine for PET bottles
(Click here to view automatic blowing machine operation )

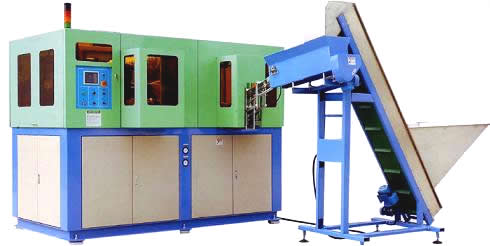

photo of automatic stretch blow molding machine

AL series automatic stretch blow molding machine, also named automatic stretch blower, stretch blowing machine, is a super contribution to the PET bottle manufacturing industry. It's a typical two stage process of making PET bottles. This process is now the most recognized and widely accepted in the world for its efficiency and cost effective to both in PET container production and transportation. Our designers and assemblers are dedicated to make this stretch blowing machine as affordable, simple and yet reliable as possible so PET makers can operate it and keep it running constantly with very limited mechanical and plastic processing knowledge.



Automatic Stretch Blowing Machine Model List



Model Cavity PET Container Capacity BPH Applications
Max. Neck Dia. (mm) Max. Body
Dia. (mm)		 Height
(mm)		 Volume
(ml)
AL-1000 1 63 210 430 10000 700 low fluidity to dried food
AL-1000W 1 120 200 330 7000 700

jars, for dried food

AL-2000 2 38 95 320 1500 1600 water, edible oil
AL-2000C 2 38 105 330 2000 1600 soda drinks, energy drinks
AL-2000SW 2 85 95 330 2000 1600 low fluidity to dried food
AL-2000H 2 38 95 330 1500 1000 hot filling applications
AL-2000L 2 48 180 330 6000 1400 water, edible oil
AL-3000 3 38 105 330 2000 2400 water, drinks
AL-3000S 3 38 65 240 600 2700 water, pharmacy bottles
AL-4000 4 38 105 330 2000 3600 most common use bottles
AL-4000H 4 38 105 330 2000 2000 hot filling applications
AL-6000S 6 38 65 240 600 5400 water, pharmacy containers



Machine Features:



Toggle Clamping Design and Forged Mold Stand

Optimized trouble-free 5-Point double-toggle clamping device produces high clamping force and fast speed. Its simple structure is easy for normal operation and regular services. Forged mold stand enhances machine stability and seamless working.



Layered Heating and Heating Uniformity

Layered heating system with frequency converter and PLC work together to provide PID control to the heating zones to ensure temperature accuracy and uniformity. Heating zones are tailored for specific bottle designs on different models of machine. The ventilation blower with duct not only uniforms preform heating but also brings hot air to outdoor to improve working condition when it becomes necessary.



Operator Friendly Design

Self-diagnosis is programmed in MITSUBISHI Controller and its alarm system always keeps users informed through the operator friendly interface, the touch-on LCD monitor. All side protect covers are designed to be lifted upward when doing services or changing mold to avoid mess and save space so that the efficiency and well organized working site is always guaranteed.



Brand Name Components

Best quality parts assure best quality performance. Brand name components, such as SCHNEIDER contacts, frequency inverter, infrared thermo detector, circuit breaker, safety interlock switch, safety relay module, power supply and motor protector, SMC high pressure valve and high pressure muffler, FESTO low pressure valve, solenoid valve, swing valve and cylinder, OMRON proximity switch and limit switch. ... are applied on the automatic stretch blowing machine to enforce machine's reliability and sustainability. For details of the components list, Please check Main Parts List for automatic Blowing Machine.



Automatic Preform Scrambler and Feeder

The automatic preform scrambler works well with the machine capacity thanks to the MITSUBISHI frequency converter which ensures to keep pace with machine cycle time consistently.



CE Norm

Taking safety as first priority, we stick to CE standard of wiring, safety devices / locks, protectors, warning signs, ... etc. with conformity to the European safety NORM. Please note machine comes with CE standard with extra cost.



Top of page



Remarks:



  1. Specifications subject to change. Above table may not reflect the updated changes.
  2. It is possible to make adjustment on the machine to be able to blow containers with neck size 1-2mm bigger than the numbers specified on the table above. Please talk to our sales person sales@allrightmachinery.com for details.
  3. Actual productivity of each model depends on the bottle design and volume as well as the machine and mold cooling condition.
  4. Chiller is for cooling the blowing mold. It shall be ordered separately.
  5. Air compressor system is not included. For the information of the air compressor system please read the page
    Air Compressor System and Air Cleaning System
  6. New models for wide neck bottles are expected to be available shortly. Please always keep surfing on our website or call/ email us for updated information.




Automatic Stretch Blowing Machine
AL-1000 specifications - 10 Liter container blower
Click for video for machine operation

Productivity
BPH
700*
Number of Mold Cavity

1
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
10.0
38 — 63
210
430
Power
 Rate Power Consumption
Heating Power
KW
KW
33
30
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M3/min
7
1.8
30
6.0 — 10.0*
Chilled Water
Required

Chilled Water Pressure
Cooling Water Temperature
Water Flow

Cooling Capacity

Kg/cm2
°C
Litre/min
Kcal/hr
3
10 — 12
40
8000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.0 x 2.5 x 2.1
3500
* Actual hourly productivity and compressed air consumption depend on specific bottle design.  ** Specifications are subject to change.

Top of page

Automatic Stretch Blowing Machine

AL-1000W Specifications (e-catalog) - Wide Neck Jar Blower

Productivity
BPH
700*
Number of Mold Cavity

1
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
7.0
120
200
330
Power
 Rate Power Consumption
Heating Power
Motor Power
KW
KW
KW
63
60
3
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M3/min
7
1.8
30
5.0 — 6.0*
Cooling Water
Required for Mold
Chilled Water Pressure
Cooling Water Temperature
Cooling Capacity
Water Flow

Kg/cm2
°C
Kcal/hr
Liter/min
3
10 — 12
8000
40
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
40
8000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.0 x 2.2 x 2.2
3500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
* Specifications are subject to change.


Top of page

Automatic Stretch Blowing Machine

AL-2000 Specifications (e-catalog) - Most Popular for Liquids such as Drinking Water, Oil, ...

Productivity
BPH
1600*
Number of Mold Cavity

2
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
1.5
38
95
320
Power
 Rate Power Consumption
Heating Power
Motor Power
KW
KW
KW
37
34
3
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
MPa
M3/min
7
1.4
35
3.0*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
30
8000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
30
7000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
2.7 x 1.8 x 2.0
3500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subject to change.


Top of page

Automatic Stretch Blowing Machine

AL-2000C Specifications (e-catalog) - Soda Drink Blower

Productivity
BPH
1600*
Number of Mold Cavity

2
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
2.0
38
105
330
Power
 Rate Power Consumption
Heating Power
Motor Power
KW
KW
KW
63
60
3
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M3/min
7
1.6
35
4.0*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
30
8000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
30
7000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.6 x 2.2 x 2.2
4000

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subject to change.


Top of page

Automatic Stretch Blowing Machine

AL-2000SW(Click here for video) AL-2000SW (e-catalog) Specifications - Canister Blower

Productivity
BPH
1600*
Number of Mold Cavity

2
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
1.5
85
95
330
Power
 Rate Power Consumption
Heating Power
Motor Power
KW
KW
KW
63
60
3
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
7
1.6
35
4.0*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
40
8000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
40
8000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.6 x 2.2 x 2.2
4000

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subjest to change.


Top of page

Automatic Stretch Blowing Machine

AL-2000W Specifications - Wide Neck Jar Blower

Productivity
BPH
1500*
Number of Mold Cavity

2
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
6.0
120
180
330
Power
 Rate Power Consumption
Heating Power
KW
KW
63
60
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
7
1.8
25
6.0 —8.0*
Cooling Water
Required
Chilled Water Pressure
Cooling Water Temperature
Water Flow
Kg/cm2
°C
Liter/min
3 —5
10 — 12
40
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.5 x 2.2 x 2.2
6000

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subjest to change.


Top of page

Automatic Stretch Blowing Machine

AL-2000H Specifications (e-catalog) - Hot Filling Bottle Blower

Productivity
BPH
1000-2000*
Number of Mold Cavity

2
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
1.5
38
95
335
Power
 Rate Power Consumption
Heating Power
KW
KW
63
60
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M3/min
7
1.4
35
3.0 — 4.0*
Mold Temperature Control
Pressure
Temperature Range
Consumption
Kg/cm2
°C
Liter/min
3 —4
130 — 140
60
Freezer
 Air Pressure
Air Temperature
Air Consumption
Kg/cm2
°C
Litre/min
20
- 2 — 0
35
Cooling Water
Required
Chilled Water Pressure
Cooling Water Temperature
Water Flow
Kg/cm2
°C
Liter/min
3 —5
10 — 12
30
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.5 x 2.2 x 2.2
3500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subject to change.

*** Freezer and mold temperature controller are required to blow hot filling bottles. Please note that the design of preform, raw material for hot filling bottles are different from regular PET bottles.



Top of page

Automatic Stretch Blowing Machine

AL-2000L Specifications (e-catalog) - Large Bottle Blower for Water, Edible oil,...

Productivity
BPH
1400*
Number of Mold Cavity

2
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
6.0
48
180
330
Power
 Rate Power Consumption
Heating Power
Motor Power
KW
KW
KW
51.5
48
3.5
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M3/min
7
1.8
35
9.0*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
40
8000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
40
8000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.6 x 2.2 x 2.2
5500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
* This machine come is designed for blowing large bottles with maximum neck finish 48mm. Servo motors and air recycling system can be added to raise productivity upon request.
** Specifications are subject to change.



Top of page

Automatic Stretch Blowing Machine

AL-3000 Specifications (e-catalog) - Most Popular for Liquids such as Mineral Water, Oil, ...

Productivity
BPH
2400*
Number of Mold Cavity

3
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
2.0
38
105
330
Power

Rate Power Consumption
Heating Power

Motor Power

KW
KW
KW
63
60
3
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
7
1.6
35
5.0*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
40
8000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
40
8000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.6x 2.2 x 2.2
4000

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subject to change.



Top of page

Automatic Stretch Blowing Machine

AL-3000S Specifications (e-catalog) - For small containers such as bottles for medicine, cosmetics, water, ...

Productivity
BPH
2700*
Number of Mold Cavity

3
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
0.6
38
65
240
Power
 Rate Power Consumption
Heating Power
Motor Power
KW
KW
KW
43
40
3
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
7
1.6
35
2.0*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
40
8000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
30
7000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
2.7x 2.2 x 2.2
3500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subject to change.

Top of page

Automatic Stretch Blowing Machine

AL-3000WM Specifications - Wide neck jars for low fluidity and dried foods.

Productivity
BPH
2700*
Number of Mold Cavity

3
Container
 Maximum Container Volume
Neck Range (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
3.0
120
130
330
Power
 Rate Power Consumption
Heating Power
KW
KW
73
70
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
7
1.6
25
6.0 —8.0*
Cooling Water
Required
Chilled Water Pressure
Cooling Water Temperature
Water Flow
Kg/cm2
°C
Liter/min
3 —5
10 — 12
40
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.70x 2.1 x 2.3
6500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subject to change.

Top of page

Automatic Stretch Blowing Machine

AL-4000 Specifications (e-catalog)- For Most Common Use Bottles
Click to see video for AL-4000 machine operation

Productivity
BPH
3600*
Number of Mold Cavity

4
Container
 Maximum Container Volume
Maximum Neck (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
2.0
38
105
330
Power
 Rate Power Consumption
Rated Heating Power
Motor Power
KW
KW
KW
63.5
60
3.5
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
7
1.6
35
6.5*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
60
11000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
40
8000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.6 x 2.2 x 2.2
5500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
* Compacted preform arrangement in heating zones for energy saving and machine foot space.
* Specifications are subject to change.
* This machine can be equipped with servo motors for higher productivity. Please add E on the model of machine with servo motors option, i.e. AL-4000E.



Top of page

Automatic Stretch Blowing Machine

AL-4000H Specifications (e-catalog) - For Hot Filling Bottles

Productivity
BPH
2000*
Number of Mold Cavity

4
Container
 Maximum Container Volume
Maximum Neck (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
2.0
38
105
330
Power
 Rate Power Consumption
Rated Heating Power
KW
KW
65
60
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
8
2.0
35
6 - 8*
Mold Temperature Control
Pressure
Temperature Range
Consumption
Kg/cm2
°C
Liter/min
3 —4
130 — 140
60
Freezer
 Air Pressure
Air Temperature
Air Consumption
Kg/cm2
°C
Litre/min
20
- 2 — 0
35
Cooling Water
Required
Chilled Water Pressure
Cooling Water Temperature
Water Flow
Kg/cm2
°C
Liter/min
3 —5
10 — 12
50
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.6 x 2.1 x 2.2
5000

* Actual hourly productivity and compressed air consumption depend on specific bottle design.

* Compacted preform arrangement in heating zones for energy saving and machine foot space.
* Specifications are subject to change.

* Freezer and mold temperature controller are required to blow hot filling bottles. Please note that the design of preform, raw material for hot filling bottles are different from regular PET bottles.



Top of page

Automatic Stretch Blowing Machine

AL-4000WM Specifications - For Most Common Use Bottles

Productivity
BPH
3600*
Number of Mold Cavity

4
Container
 Maximum Container Volume
Maximum Neck (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
2.0
90
105
330
Power
 Rate Power Consumption
Rated Heating Power
KW
KW
83
80
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
8
2.0
25
6 - 8*
Cooling Water
Required
Chilled Water Pressure
Cooling Water Temperature
Water Flow
Kg/cm2
°C
Liter/min
3 —5
10 — 12
50
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
4.1 x 2.1 x 2.4
6500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
** Specifications are subject to change.

Top of page

Automatic Stretch Blowing Machine

AL-6000S Specifications (e-catalog)- For Small Containers, such as water, medicine, cosmetic bottles.

Productivity
BPH
5400*
Number of Mold Cavity

6
Container
 Maximum Container Volume
Maximum Neck (diameter)
Maximum Container Diameter
Maximum Container Height
Liter
mm
mm
mm
0.6
38
65
240
Power
 Rate Power Consumption
Heating Power
Motor Power
KW
KW
KW
39.5
36
3.5
Compressed Air
Operating Pressure
Operating Air Consumption
Blowing Pressure
Blowing Air Consumption
Kg/cm2
M3/min
Kg/cm2
M 3/min
8
1.6
35
3.3*
Cooling Water
Required for Mold
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity
Kg/cm2
°C
Liter/min
Kcal/hr
3
10 — 12
60
11000
Cooling Water
Required
for Heating Area
 Chilled Water Pressure
Cooling Water Temperature
Water Flow
Cooling Capacity

Kg/cm2

°C
Liter/min
Kcal/hr

3
20
40
8000
Machine
 Machine Measurement (LxWxH)
Machine Weight (preform scrambler excluded)
m
Kg
3.6 x 2.1x 2.2
5500

* Actual hourly productivity and compressed air consumption depend on specific bottle design.
* Compacted preform arrangement in heating zones for energy saving and machine foot space.
* Specifications are subject to change.



Top of page
