PVC Pipe Fitting Mold Design

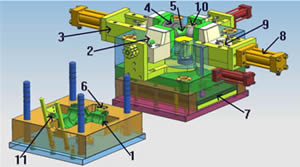

Tee soccket with inspection window
1. Cavity and core material - Pre-hardened corrosion resistant mirror steel vacuum quenching to HRC46-51 after processed;
2. Core slide material - Pre-hardened P20 and nitriding to HRC50-55 after processed, round-square connecting for smooth movement;
3. Cylinder slide – Pre-hardened P20 heat treated to harder with friction resistant lubrication groove. Tee groove is introduced between the I-beam-shaped board and the base board which is easy to be dismantled with less deformation;
4. Central inlet and multi outlets for cooling water makes efficient cooling so that to increase productivity;
5. Gear rack driven by hydraulic cylinders converts linear to rotation motion with sufficient lubrication and no bearing in between;
6. The stopper has self-locked structure with friction-proof block YK30;
7. Ejection board has four guides/bushings centered by the gate which ensures smooth ejection;
8. High quality hydraulic cylinders (imported cylinders) for core pulling devices with Omron limited switches D4NA-4122;
9. I-beam-shaped adjustable blocks between the slides and cylinders;
10. Ring shaped inspection plug can be used either for inspection when it is installed or standard Tee connector when removed;
11.
Locators are applied between the fixed mold and the moving mold for proper mold clamping.
110-75 Reduce Socket Mold Design
