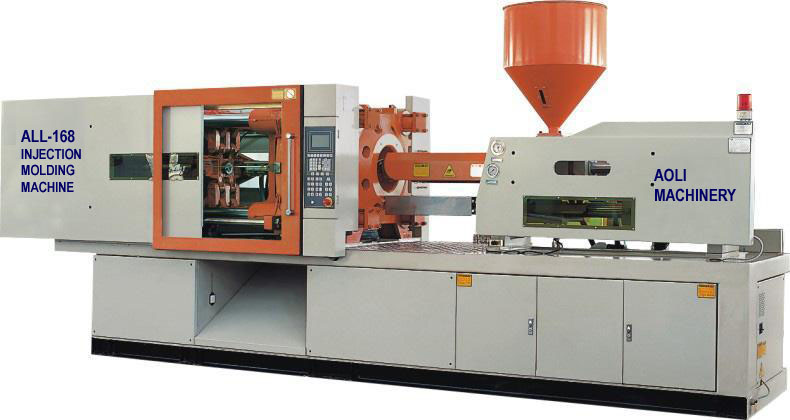

Injection Molding Machine ALL-168
Machine for general molding
Model ALL-168 Specifications
Model |
Screw Type |
||||
A |
B |
C |
|||
Injection Unit |
Screw Diameter | mm |
40 |
45 |
48 |
| Screw L/D Ratio | 22.5 |
20 |
18.8 |
||
| Shot Size (Theotical) | CM3 |
270 |
342 |
389 |
|
| Injection Capacity (PS) | g |
243 |
308 |
350 |
|
| Injection Pressure | Mpa |
201 |
159 |
140 |
|
| Srew Speed | rpm |
180 |
|||
Clamping Unit |
Clamp Force | KN |
1680 |
||
| Toggle Stroke | mm |
425 |
|||

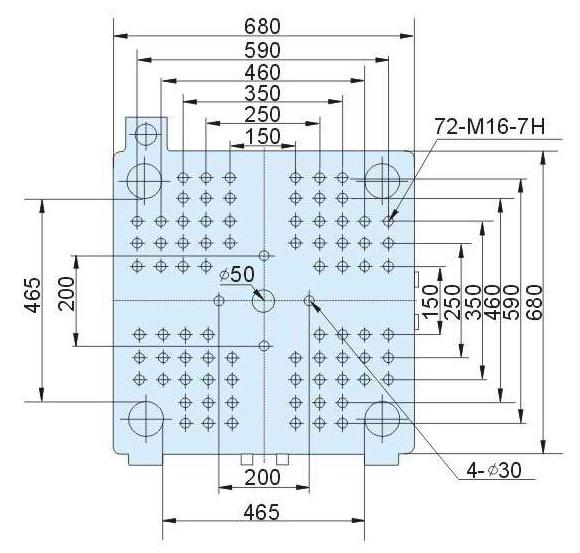

| Space Between Tie-Bars | mm |
465x465 |
|||
| Max. Mould Height | mm |
480 |
|||
| Min. Mould Height | mm |
180 |
|||
| Ejector Stroke | mm |
130 |
|||
| Ejector Force | KN |
39.6 |
|||
| Ejector Number | PC |
5 |
|||
General |
Max.Pump Pressure | MPs |
16 |
||
| Pump Motor Power | KW |
15 |
|||
| Heater Power | KW |
10 |
|||
| Machine Diamensions | m(LxWxH) |
4.8x1.4x2.0 |
|||
| Machine Weight | t |
5.5 |
|||
| Oil Tank | L |
250 |
|||
* Above table may not reflect recent changes. Please consult the sales person for accuracy.
Injection Molding Machine Modified for PET Preform Molding
Features
- Box mold platen design means stable and precise molding.
- Five point toggle mechanism ensures long life span and reliable movement.
- High-geared hydraulic system design features high accuracy, consistency and efficiency.
- Applied brand valves and pumps such as Vickers, Yukon or Rexroth to ensure machine with high performance and low maintenance.
- Twin-cylinder guarantees balanced injection.
- Pressure and flow proportional controlled.
- Multi-stage pressure/speed injection.
- Low-pressure mold protection.
- Linear sensors assure high accuracy on injection, clamping and ejection.
- Mold alignment driven by hydraulic motor. Mold adjustment can be done in shorttime with high accuracy at low pressure.
- Large LCD monitor shows current running status and the controller stores up to 100 mold settings.
- Integrated self-diagnosis is programmed in the control system with clear indications of the errors on the monitor.
- Mechanic, electronic and hydraulic safety system conformity to CE norms.
