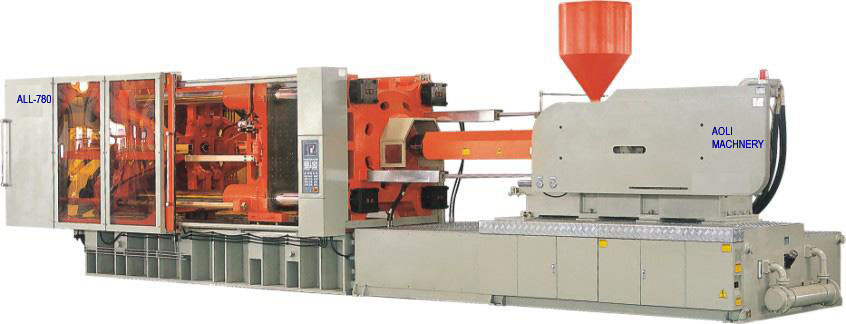

Injection Molding Machine ALL-780
Machine for general molding
Model ALL-780 Specifications
Model |
Screw Type |
|||||
A |
B |
C |
D |
|||
Injection Unit |
Screw Diameter | mm |
90 |
100 |
110 |
120 |
| Screw L/D Ratio | 24.5 |
22 |
20 |
18.3 |
||
| Shot Size (Theotical) | CM3 |
2925 |
3611 |
4369 |
5200 |
|
| Injection Capacity (PS) | g |
2632 |
3250 |
3932 |
4680 |
|
| Injection Pressure | Mpa |
228 |
184 |
152 |
128 |
|
| Srew Speed | rpm |
120 |
||||
Clamping Unit |
Clamp Force | KN |
7800 |
|||
| Toggle Stroke | mm |
985 |
||||
| Space Between Tie-Bars | mm |
980x980 |
||||
| Max. Mould Height | mm |
1000 |
||||
| Min. Mould Height | mm |
400 |
||||
| Ejector Stroke | mm |
280 |
||||
| Ejector Force | KN |
186 |
||||
| Ejector Number | PC |
21 |
||||
General |
Max.Pump Pressure | MPs |
16 |
|||
| Pump Motor Power | KW |
37+37 |
||||
| Heater Power | KW |
58.45 |
||||
| Machine Diamensions | m(LxWxH) |
11.0x2.6x3.8 |
||||
| Machine Weight | t |
45 |
||||
| Oil Tank | L |
1800 |
||||
* Above table may not reflect recent changes. Please consult the sales person for accuracy.
Injection Molding Machine Modified for PET Preform Molding
Features
- Box mold platen design means stable and precise molding.
- Five point toggle mechanism ensures long life span and reliable movement.
- High-geared hydraulic system design features high accuracy, consistency and efficiency.
- Applied brand valves and pumps such as Vickers, Yukon or Rexroth to ensure machine with high performance and low maintenance.
- Twin-cylinder guarantees balanced injection.
- Pressure and flow proportional controlled.
- Multi-stage pressure/speed injection.
- Low-pressure mold protection.
- Linear sensors assure high accuracy on injection, clamping and ejection.
- Mold alignment driven by hydraulic motor. Mold adjustment can be done in shorttime with high accuracy at low pressure.
- Large LCD monitor shows current running status and the controller stores up to 100 mold settings.
- Integrated self-diagnosis is programmed in the control system with clear indications of the errors on the monitor.
- Mechanic, electronic and hydraulic safety system conformity to CE norms.
