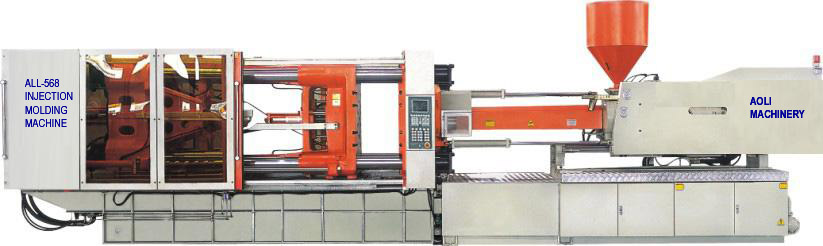

Injection Molding Machine ALL-568
Machine for general molding
Model ALL-568 Specifications
Model |
Screw Type |
|||||
A |
B |
C |
D |
|||
Injection Unit |
Screw Diameter | mm |
75 |
84 |
90 |
100 |
| Screw L/D Ratio | 23.6 |
21.1 |
19.7 |
17.7 |
||
| Shot Size (Theotical) | CM3 |
1808 |
2492 |
2861 |
3532 |
|
| Injection Capacity (PS) | g |
1627 |
2242 |
2575 |
3179 |
|
| Injection Pressure | Mpa |
205 |
163 |
142 |
115 |
|
| Srew Speed | rpm |
120 |
||||
Clamping Unit |
Clamp Force | KN |
5680 |
|||
| Toggle Stroke | mm |
850 |
||||

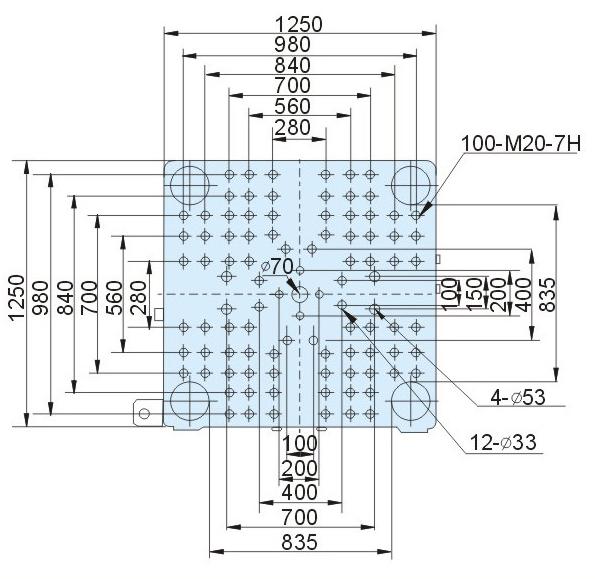

| Space Between Tie-Bars | mm |
835x835 |
||||
| Max. Mould Height | mm |
880 |
||||
| Min. Mould Height | mm |
350 |
||||
| Ejector Stroke | mm |
250 |
||||
| Ejector Force | KN |
158 |
||||
| Ejector Number | PC |
17 |
||||
General |
Max.Pump Pressure | MPs |
16 |
|||
| Pump Motor Power | KW |
55 |
||||
| Heater Power | KW |
34 |
||||
| Machine Diamensions | m(LxWxH) |
9.0x2.5x2.8 |
||||
| Machine Weight | t |
30 |
||||
| Oil Tank | L |
1200 |
||||
* Above table may not reflect recent changes. Please consult the sales person for accuracy.
Injection Molding Machine Modified for PET Preform Molding
Features
- Box mold platen design means stable and precise molding.
- Five point toggle mechanism ensures long life span and reliable movement.
- High-geared hydraulic system design features high accuracy, consistency and efficiency.
- Applied brand valves and pumps such as Vickers, Yukon or Rexroth to ensure machine with high performance and low maintenance.
- Twin-cylinder guarantees balanced injection.
- Pressure and flow proportional controlled.
- Multi-stage pressure/speed injection.
- Low-pressure mold protection.
- Linear sensors assure high accuracy on injection, clamping and ejection.
- Mold alignment driven by hydraulic motor. Mold adjustment can be done in shorttime with high accuracy at low pressure.
- Large LCD monitor shows current running status and the controller stores up to 100 mold settings.
- Integrated self-diagnosis is programmed in the control system with clear indications of the errors on the monitor.
- Mechanic, electronic and hydraulic safety system conformity to CE norms.
